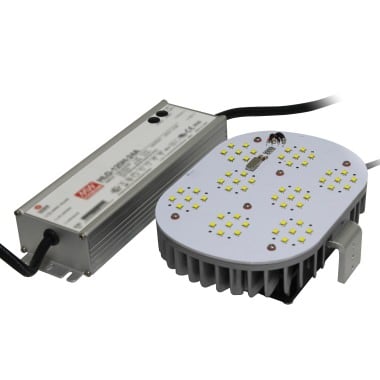

LED retrofit kit RFCD 120W temperature control

LED retrofit kit RFCD 120W temperature control

Features:

  • CREE XTE Chip, SUNON fan
  • Warm / Natural / Cool / Cold white
  • Mean Well external driver, input voltage AC100-277V
  • Can be with 15°, 30° , 45°, 60°, 75°and 90°lens
  • No UV or IR in the beam
  • Easy to install and operate
  • Energy saving, long service life
  • Light is soft and uniform, safe to eyes
  • Instant start, NO flickering, NO humming
  • Green and eco-friendly without mercury

Application:

  • Retrofitting Parking lots, shoeboxes, streetlights, floodlights, wall packs, high bays, and canopies has just been made simple.
  • Matched lighting angle lens to meet different needs.

Specifications:

General data Model SS-RFCD-120W
Product name LED Retrofit Kit 120W With Temperature Control
Order Code SS-RFCD-120W-CW
SS-RFCD-120W-PW
SS-RFCD-120W-WW
Life span 50,000+ Hours
Certificates UL, CE, RoHS
Warranty 5 years
Electrical data Voltage (v) 100-277V AC 50-60Hz
Watt (w) 120
Driver brand Mean Well
Lamp power factor >0.9
Optical data Luminous flex(lm) 9000-12840
Color temperature 2700-7000K
CRI (Ra) >70
Beam angle (°) 15°, 30°, 45°
60°, 75°, 90°
Physical data LED type XTE, 1-5W
Number of LEDs (pcs) 56
LED chip brand CREE
Lamp body Die-casted aluminum + Sunon Fan
Body color Gray
IP rating IP40
Fixture size (mm) (255-295)*152*61
Product Net Weight (kg) 2.28
Packaging data Quantity/Carton (pcs) 4
Carton Size L*W*H (cm) 53*31*30
Carton Volume (cbm) 0.049
Gross weight (kg) 12
