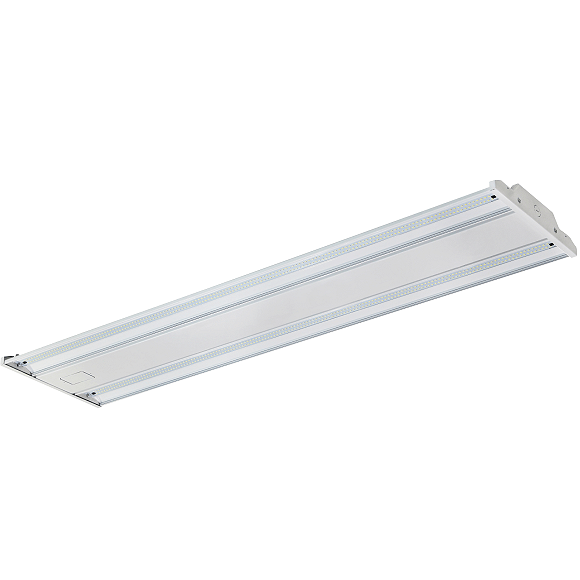

LED linear high bay light HBT 220W

  • SinoStar Lighting's LED linear high bay lights are built with high quality components for high perofrmance and stablity with 5 year warranty.  It is ideal products to replace tradtional HID bulbs installed fixtures. It works in both damp location.  This series LED linear high bay lights are availble from 50W, 110W, 165W, 220W and 240W to replace MHL and HPS bulb fixture from 100W to 1000w. It has been widely used to retofit and new installation in warehouse, factory, workshops, exhibition hall, gymnasium and supermarket, school, etc.

    Features:

    • UL cUL DLC CE certificate.
    • IP65 driver, input voltage 100-277VAC.
    • 130-142LM/W
    • Motion Sensor/PIR Sensor Optional
    • Cable mount/Chain mount/Surface mount/Pendend mount
    • Wire Guard Optional
    • Emergency Backup Optional
    • 5 Year Warranty
    • No UV or IR in the beam
    • Easy to install and operate
    • Energy saving, long lifespan
    • Instant start, NO flickering, NO humming
    • Green and eco-friendly without mercury.

    Specifications:

    General data Model SS-HBT-220W
    Product name LED high bay light HBT 220W
    Life span 50,000+ Hours
    Warranty 5 years
    Installation Wall mounted / Suspended
    Certificates CE/RoHS/SAA/UL
    Electrical data Voltage (v) 100-277VAC 50-60Hz
    Watt (w) 220
    Power supply Class P Driver
    Emergency Optional
    Motion Sensor Optional
    PIR Sensor Optional
    THD ≤20%
    Power factor ≥0.9
    Optical data Luminous flux (lm) 29000-30500LM
    Lumen Efficacy 132-138LM/W
    Color temperature 4000K, 5000K, 5700K
    CRI (Ra) >80
    Beam angle 110°
    Physical data LED type SMD 2835 (0.5W/pc)
    Number of LEDs 600pcs
    LED chip brand HONGLI
    Lamp body material Aluminum Alloy
    Body color White/ Other Color
    IP rating DAMP
    Packaging data Fixture body size 1200x300x60mm
    Quantity/Carton 1 pc
    Carton Size L*W*H  126x36x12cm
    Net weight (kg) 6.3
    Gross weight (kg) 7.8
