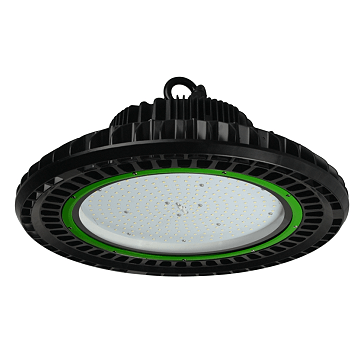

UFO LED High Bay Lights HBR

UFO LED High Bay Lights HBR

SinoStar Lighting has energy-efficient LED UFO High Bay lighting for all your commercial and industrial projects.

SinoStar Lighting LED UFO High Bay Lights are superior lighting and energy savings over commercial HID fixtures from schools, warehouses, and factories to recreational facilities.

The energy saving over metal halide and low-pressure sodium can be more than 55%, and the SinoStar LED high bay light last many times longer. Also, they offer DALI and 0-10V dimming functionality for even more energy-saving solutions.

General data Model SS-HBR-100W SS-HBR-150W SS-HBR-200W SS-HBR-240W
Product name LED high bay light HBR 100W  LED high bay light HBR 150W LED high bay light HBR 200W LED high bay light HBR 240W
Order Code SS-HBR-100W-CW
SS-HBR-100W-PW
SS-HBR-100W-WW
SS-HBR-150W-CW
SS-HBR-150W-PW
SS-HBR-150W-WW
SS-HBR-200W-CW
SS-HBR-200W-PW
SS-HBR-200W-WW
SS-HBR-240W-CW
SS-HBR-240W-PW
SS-HBR-240W-WW
Life span 50,000+ Hours 50,000+ Hours 50,000+ Hours 50,000+ Hours
Warranty 5 years 5 years 5 years 5 years
Installation Wall mounted / Suspended Wall mounted / Suspended Wall mounted / Suspended Wall mounted / Suspended
Certificates CE/RoHS/SAA/UL CE/RoHS/SAA/UL CE/RoHS/SAA/UL CE/RoHS/SAA/UL
Electrical data Voltage (v) 100-277VAC 50-60Hz 100-277VAC 50-60Hz 100-277VAC 50-60Hz 100-277VAC 50-60Hz
Watt (w) 100 150 200 240
Power supply Mean Well Mean Well Mean Well Mean Well
Power factor >0.95 >0.95 >0.95 >0.95
Optical data Luminous flux (lm) 11500-12500 19500-20500 24000-25000 30000-31500
Color temperature 3000-6500K 3000-6500K 3000-6500K 3000-6500K
CRI (Ra) >80 >80 >80 >80
Beam angle (°) 120° 120° 120° 120°
Physical data LED type LUXEON 3030 2D (1.5W) LUXEON 3030 2D (1.5W) LUXEON 3030 2D (1.5W) LUXEON 3030 2D (1.5W)
Number of LEDs (pcs) 153 224 300 360
LED chip brand PHILIPS LUMILEDS PHILIPS LUMILEDS PHILIPS LUMILEDS PHILIPS LUMILEDS
Lamp body material Die-cast aluminum + Tempered Glass Die-cast aluminum + Tempered Glass Die-cast aluminum + Tempered Glass Die-cast aluminum + Tempered Glass
Body color Black Black Black Black
IP rating IP65 IP65 IP65 IP65

For detailed specification, please check following:
