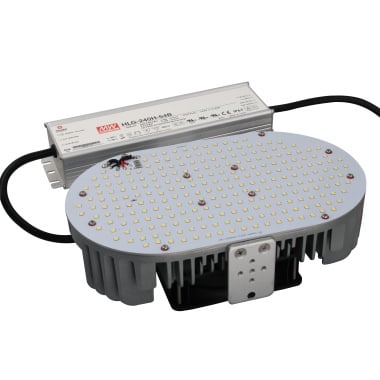

LED retrofit kit RFPD 200W temperature control

LED retrofit kit RFPD 200W temperature control

Features:

  • PHILIPS Chip, SUNON fan
  • High CRI
  • Mean Well IP65 driver,
  • Input voltage 100-277VAC
  • No UV or IR in the beam
  • Easy to install and operate
  • Energy saving, long service life
  • Light is soft and uniform, safe to eyes
  • Instant start, NO flickering, NO humming
  • Green and eco-friendly without mercury

Application:

Street lights, shoeboxes, flood lights, wall Packs, canopy lights, high bays

Specifications:

General data Model SS-RFPD-200W
Product name LED Retrofit Kit 200W With Temperature Control
Order Code SS-RFPD-200W-CW
SS-RFPD-200W-NW
SS-RFPD-200W-PW
SS-RFPD-200W-WW
Life span 50,000+ Hours
Certificates UL, CE, RoHS
Warranty 5 years
Electrical data Voltage (v) 100-277V AC 50-60Hz
Watt (w) 200
Driver brand Mean Well
Lamp power factor >0.9
Optical data Luminous flex (lm) 20000-27000LM
Color temperature  2700-7000K
CRI (Ra) >80
Beam angle (°) 120
Physical data LED type 3030, 1.5W
Number of LEDs (pcs) 245
LED chip brand PHILIPS
Lamp body Die-casted aluminum + Sunon Fan
Body color Gray
IP rating IP40
Fixture size (mm) (340-370)*182*87
(325-355)*182*(130-160
265*182*(225-295)
Product Net Weight (kg) 3.8
Packaging data Quantity/Carton (pcs) 4
Carton Size L*W*H (cm) 65*42*31
Carton Volume (cbm) 0.085
Gross weight (kg) 19.8
