| General data |
Model |
SS-SLM-220W |
| Product name |

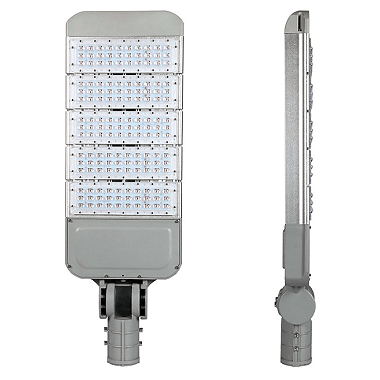

LED street light SLM 220W |
| Life span |
50,000+ Hours |
| Warranty |
5 years |
| Certificates |
CE/RoHS |
| Electrical data |
Voltage (v) |
85-265VAC 50-60Hz |
| Watt (w) |
220 |
| Impact resistance |
IK08 |
| Power supply |
SOSEN/MEAN WELL |
| Power factor |
>0.95 |
| Surge Protection |
15KV |
| Protection Class |
Class I |
| Operating temperature |
- 20°C ~+ 50°C |
| Optical data |
Luminous flux (4000K) (lm) |
29000±700 |
| Humidity |
>95% |
| CRI (Ra) |
>70 |
| Beam angle (°) |
Batwing Iso-brightness |
| Physical data |
LED type |
SMD 3030 |
| LED brand |
EPISTAR |
| Housing material |
Aluminum + PC lens |
| Body color |
Black/Gray/White |
| LED Modular Qty. (pcs) |
5 |
| IP rating |
LED Module IP68/Driver IP67 |
| Packing data |
Product size LxWxH (mm) |
860x285x65 |
| Quantity/Carton (pcs) |
1 |
| Carton Size LxWxH (mm) |
920x340x100 |
| Net weight (kg) |
11.5 |
| Gross weight (kg) |
12.5 |
