Single-Ended Germicidal UV lamps

Single-ended UV germicidal lamps are similar in size and shape to conventional UV lamps, but they are capable of operating at higher UV output. SinoStar's UV germicidal lamps have been using in forced air duct systems and water disinfection applications. These single-ended germicidal UV lamps can produce Ozone. And these UV lamps are the perfect application for odor control and photochemical use—available in Low Ozone and Ozone Producing versions.

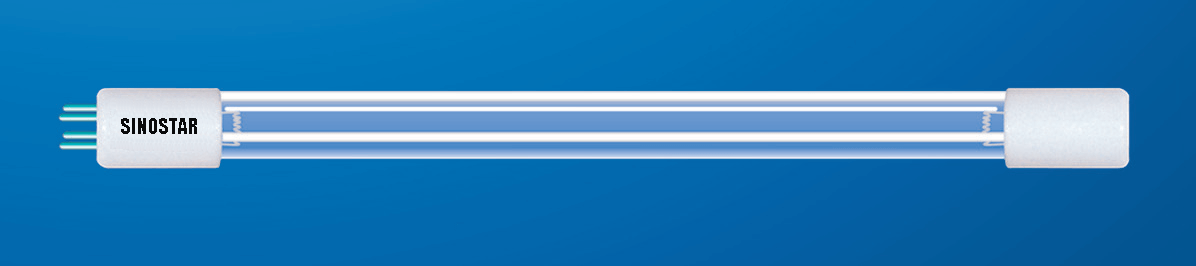

Single ended 4 pins UV germicidal high power lampsFeatures:

  • Special treatment on electrode and quartz tubes used to make the lifetime longer and improve UV light output.
  • Two different bases are matching to quartz glass sleeves of 20mm and 22mm inner diameters.
  • High ozone lamps can produce hydroxyl in the water, dissolve, reduce TOC.

Applications:

Disinfection of pure water, regular water, and medical water, etc.

For water disinfection equipment and wastewater treatment to reduce TOC

Specifications:

Order Code Diameter Length
Base Face to Face		 Wattage  Lamp Voltage Lamp Current  UV Output @1M Base
Ozone Free Ozone Producing mm mm W V mA µW/cm² Code
SS10D15W-Z212 SS10D15Y-Z212 15 212 10 22-39 250 21-24 G10q
SS14D15W-Z284 SS14D15Y-Z284 15 284 14 28-39 350 31-35 G10q
SS15D15W-Z303 SS15D15Y-Z303 15 303 15 30-40 300 33-37 G10q
SS15D15W-Z356 SS15D15Y-Z356 15 356 18 34-46 340 48-54 G10q
SS23D15W-Z436 SS23D15Y-Z436 15 436 23 40-55 420 52-69 G10q
SS28D15W-Z550 SS28D15Y-Z550 15 550 28 51-69 370 85-92 G10q
SS37D15W-Z793 SS37D15Y-Z793 15 793 37 78-101 350 110-116 G10q
SS40D15W-Z851 SS40D15Y-Z851 15 851 40 81-99 380 120-130 G10q
SS55D15W-Z1149 SS55D15Y-Z1149 15 1149 55 122-149 320 150-180 G10q
SS75D15W-Z1554 SS75D15Y-Z1554 15 1554 75 173-210 330 180-210 G10q
