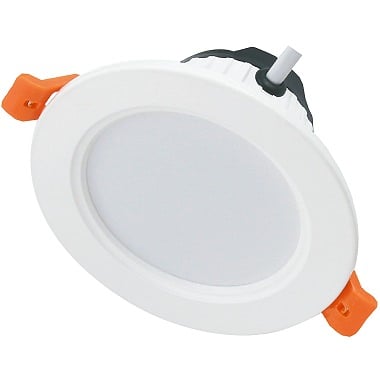

LED down light DL 9W
Features:
- A true economic and efficient replacement for existing CF-L downlights and ceiling lights
- Provides optimum efficiency with up to 90 lumens/w
- Long life, 30,000 hours @ 70% luminous flux
- Using high quality forged aluminum alloy dissipation heat sink
- 3000K-6500K CCT options typical CRI Ra80
- Finish color available with High gloss/Matt white/Stain silver/Stain gold/Champagne gold
Specifications:
| General data | Model | SS-DL-9W |
| Product name | LED Down Light 9W | |
| Order Code | SS-DL-9W-WW SS-DL-9W-PW SS-DL-9W-CW |
|
| Life span | 50,000+ Hours | |
| Warranty | 3 years | |
| Certificates | CE/RoHS | |
| Cutout diameter (mm) | 85-100 | |
| Electrical data | Voltage (v) | 170-250VAC |
| Power (Rated, w) | 9 | |
| Optical data | Luminous flex 6500k (lm) | 700 |
| Color temperature | 3000-6500K | |
| CRI (Ra) | >80 | |
| Beam angle (°) | 120 | |
| Physical data | LED type | SMD 5730 |
| Number of LEDs (pcs) | 18 | |
| LED chip brand | Epistar | |
| Lamp body material | Aluminum Heat Sink+ PC Lens | |
| Trim color available | White | |
| Size (mm) | D110xH60 | |
| Packaging data | Quantity/Carton (pcs) | 40 |
| Carton Size L*W*H (cm) | 62*26*35 | |
| Net weight (kg) | 12 | |
| Gross weight (kg) | 13 |
