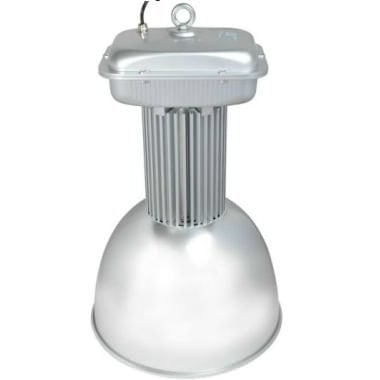

LED high bay light HB 150WB

LED high bay light HB 150WB

Features:

  • High performance and top stability with Cree/Osram/BridgeLux LED & Mean Well driver
  • 5 year warranty
  • High luminous flux up to 100Lm/W
  • Robust design with patented new generation of superconducting cooling technology
  • Compact design and light weight
  • Easy installation and no maintenance required
  • DALI dimming solutions available for increased energy saving and shorter paybacks

Specifications:

General data Model SS-HB-150WB
Product name LED high bay light 150W BridgeLux LED + Mean Well Driver
Order Code SS-HB-150WB-CW
SS-HB-150WB-PW
SS-HB-150WB-WW
Life span 50,000+ Hours
Warranty 3 years
Certificates CE/RoHS/ErP/SAA/C-tick/FCC
Equivalent watt (w) High pressure sodium light 400W
Electrical data Voltage (v) 85-277VAC 50-60Hz
Watt (w) 150
Power supply Meanwell
Power factor >0.95
Dimmable No
Optical data Efficacy (Rated) (lm/w) 90
Luminous flex (6000K) (lm) 13500
Color temperature WW 3000-3500K
PW 4000-4500K
CW 5500-6000K
CRI (Ra) >75
Beam angle (°) 90°/120°
Physical data LED type COB
Number of LEDs (pcs) 84
LED chip brand BridgeLux
Lamp body material Die-cast aluminum + PC lens
Body color Silver
IP rating IP44
Packaging data Fixture size (mm) D495xH534
Quantity/Carton (pcs) 1
Carton Size L*W*H (cm) L37 x W30 x H51 Main unit
L51 X W51 X H32 Reflectors x10
Net weight (kg) 8.50
Gross weight (kg) 11.00
20' Container (pcs) 425
40' HQ Container (pcs) 960
